APPLICATION INFORMATION PYTHON ULTRA CP
| breaking strength | + + + + + | rotation resistant | no | |
| bending performance | + + + + | use with swivel | no | |
| drum crush resistance | + + + | rec. max fleet angle | 4,0° | |
| abrasion resistance | + + + + | multi layer suited | yes | |
| lateral pressure stability | + + + + |
 |
  |
ROPE CHARACTERISTICS
The luffing rope for extreme breakload requirements including, but not limited to, dredging lines and in general offshore winch applications. Suited as hoist line in systems using a left and right handed rope and in multi-fall applications with low lifting heights.

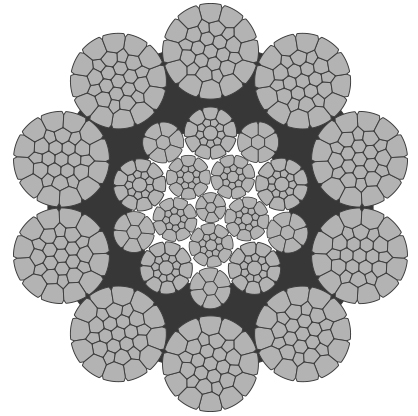

| construction 10xK31WS-EPIWRC(K) |
number of wires 522 |
load bearing outer wires 310 |
||
number of strands
|
manufacturing tolerance
|
available in
|
