PYTHON POWER 9 S

APPLICATION INFORMATION PYTHON POWER 9 S

breaking strength + + + + rotation resistant no
bending performance + + + use with swivel no
drum crush resistance + + + rec. max fleet angle 2,0°
abrasion resistance + + + + multi layer suited yes
lateral pressure stability + + + + +


ROPE CHARACTERISTICS


Very high strength yet super flexible overhead crane wire rope. Used as original equipment rope and for crane capacity upgrades. Also used as high strength engineered assembly cable for tension applications. Power 9 S is ForcePac compacted to enhance the abrasion characteristic and to reduce sheave- and drum wear.

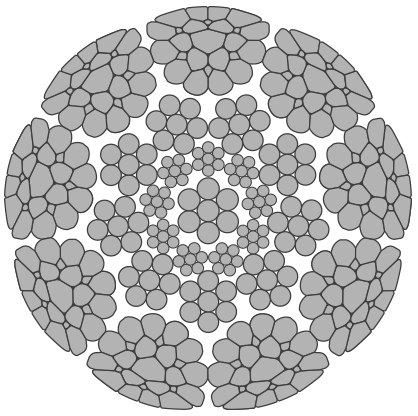

construction
10-22mm: 9xK19S-PWRC
23-32mm: 9xK25F-PWRC

  number of wires
268
358

  load bearing outer wires
171
171





number of strands
9+PWRC




manufacturing tolerance
+2% / +4%




available in
regular lay
