APPLICATION INFORMATION PYTHON POWER 9 R

breaking strength	+ + + +	rotation resistant	no
bending performance	+ + + + +	use with swivel	no
drum crush resistance	N/A	rec. max fleet angle	2,0°
abrasion resistance	+ + +	multi layer suited	no
lateral pressure stability	N/A

ROPE CHARACTERISTICS

High strength yet super flexible overhead crane wire rope. Used as original equipment rope and for crane capacity upgrades. Also used as high strength engineered assembly cable for tension applications.

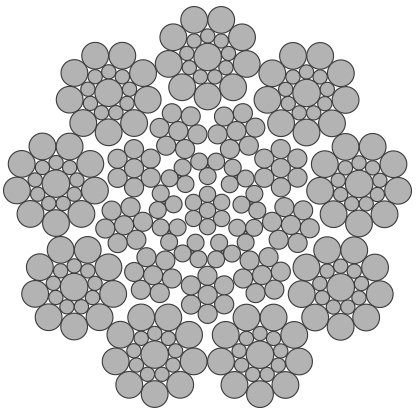

construction
10-22mm: 9x19S-PWRC
23-48mm: 9x25F-PWRC

number of wires
268
358

load bearing outer wires
171
171

number of strands
9+PWRC

manufacturing tolerance
+2% / +4%

available in
regular lay
